Analog Voltmeters
Alliance Engineering Company

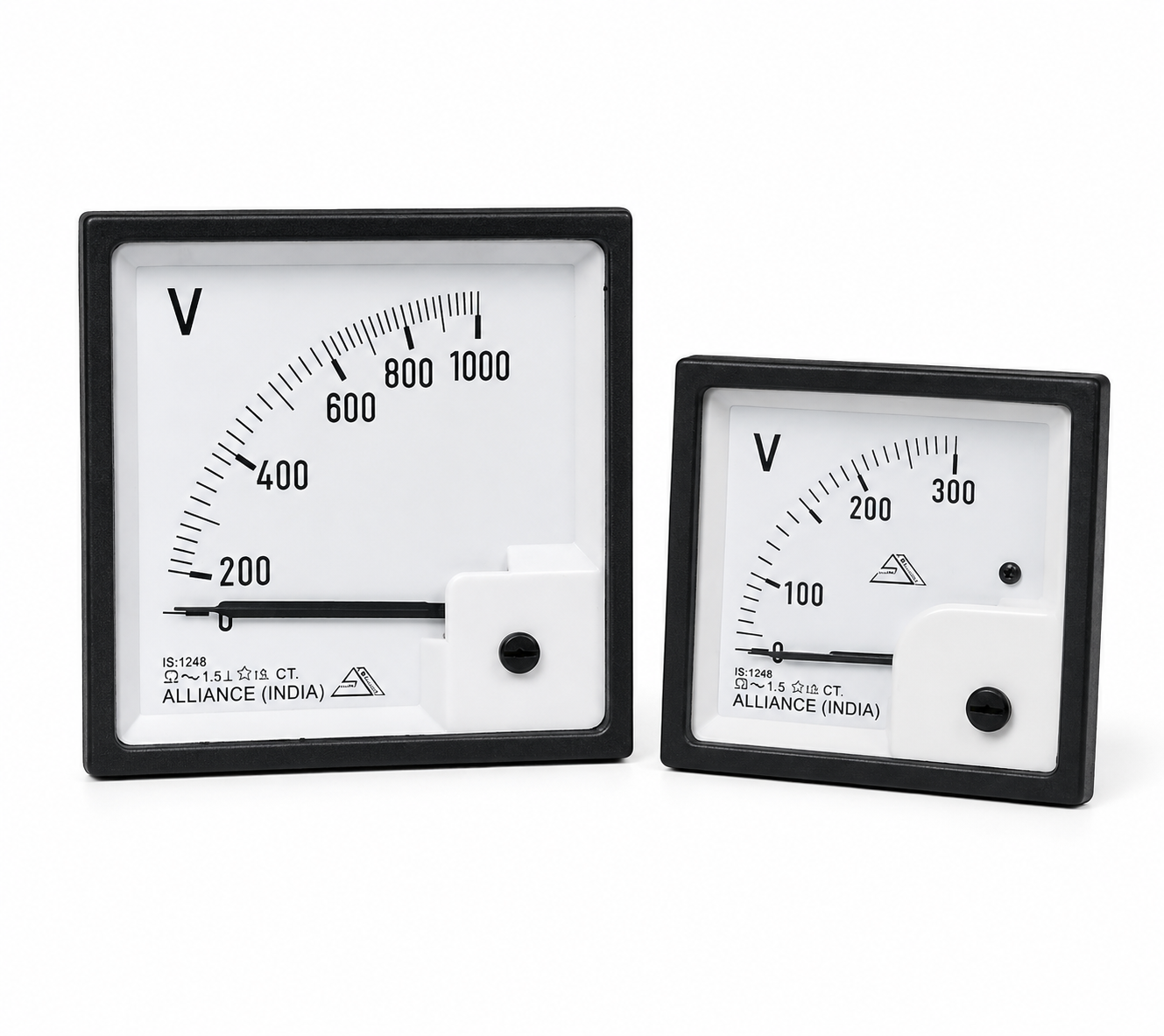

Alliance Engineering Analog Voltmeters are moving iron (AC) and moving coil (DC) panel instruments for accurate voltage measurement in industrial switchgear, MCC panels, DG panels, distribution boards, and control rooms. Available in 72mm, 96mm, and 144mm flush-mount square formats with full-scale voltage ranges from 30V to 600V AC and 30V to 500V DC (higher ranges via external PT). Class 1.5 accuracy as per IS 1248 with white dial face and black pointer for clear readability. Manufactured by Alliance (India) under ISO 9001:2015 standards.
Key Technical Advantages
Measurement Type
AC and DC Voltage
Accuracy Class
Class 1.5
Panel Sizes
72mm / 96mm / 144mm
Voltage Range
30V to 600V AC / 500V DC (direct)
Meter Type
Moving Iron (AC) / Moving Coil (DC)
Certification
ISO 9001:2015
Technical Specifications
Validated industrial performance metrics for enterprise deployment.
| Parameter | Specification |
|---|---|
| Standard | IS 1248 |
| Measurement Type | AC Voltage / DC Voltage |
| Meter Mechanism | Moving Iron (AC) / Moving Coil PMMC (DC) |
| Accuracy Class | Class 1.5 |
| AC Voltage Ranges | 30V / 75V / 150V / 300V / 415V / 500V / 600V |
| DC Voltage Ranges | 30V / 75V / 150V / 300V / 500V |
| PT Operated Ranges | Up to 33kV and above via external PT (110V secondary) |
| Frequency (AC) | 45 – 65 Hz |
| Panel Sizes | 72 × 72mm / 96 × 96mm / 144 × 144mm |
| Panel Cutout | 68 × 68mm / 92 × 92mm / 138 × 138mm |
| Mounting Type | Flush Panel Mount with rear clamp |
| Scale Arc | 90° / 240° (model dependent) |
| Overload Capacity | 1.2× continuously / 2× for 1 second |
| Power Consumption | ≤ 3VA (AC) / ≤ 2W (DC) |
| Dial Face | White with black scale markings and pointer |
| Terminal Type | Screw Terminals (rear connection) |
| Housing Material | Black Thermoplastic Bezel |
| Overvoltage Category | CAT II |
| Pollution Degree | 2 |
| Operating Temperature | -10°C to +55°C |
| Humidity | Up to 95% RH non-condensing |
Standards & Compliance
Certified engineering excellence across regional and global regulatory frameworks.
IS 1248
Compliance with standard engineering and safety performance metrics.
IEC 60051
Compliance with standard engineering and safety performance metrics.
ISO 9001:2015
Certified Quality Management Systems for precision manufacturing.
Industrial Customizations
Our modular engineering workflow allows for specific adaptations to meet your site-specific infrastructure requirements. Consult with our technical team for bespoke builds.
Voltage Range
30V to 600V AC / 500V DC (direct) / HT via PT
Measurement Type
AC / DC
Panel Size
72mm / 96mm / 144mm
Accuracy Class
Class 1.5 (standard) / Class 1.0
