Industrial Battery Chargers

Alliance Engineering Company

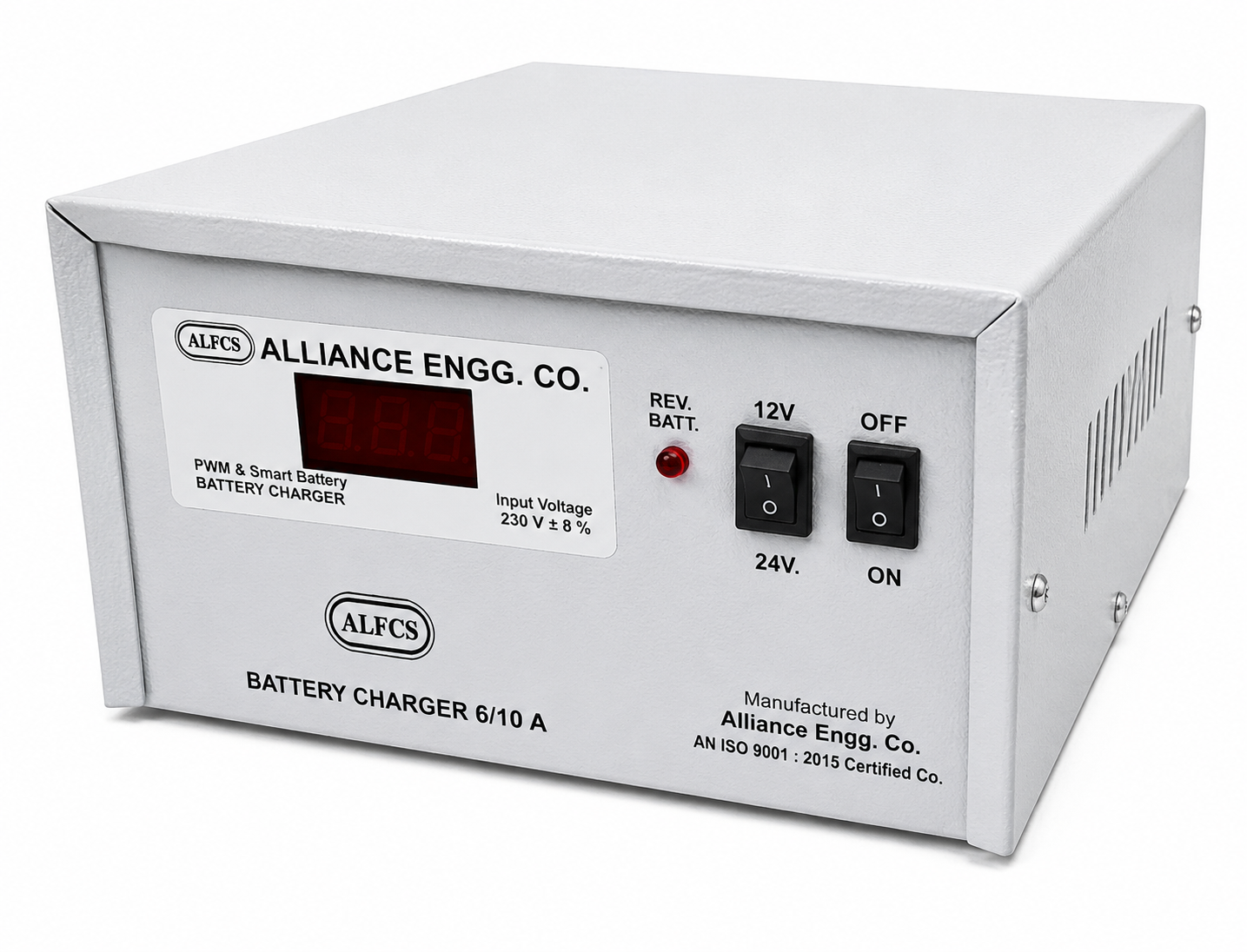

Alliance Engineering Industrial Battery Chargers are designed for reliable and efficient charging of stationary and traction battery banks in industrial environments. Available in output current ratings up to 30A and supporting system voltages of 12V, 24V, 48V, and 110V DC. Compatible with Lead Acid, VRLA/SMF, Lithium-Ion, and Nickel Cadmium battery chemistries. Features automatic charging with constant current / constant voltage (CC/CV) topology, overcharge protection, short circuit protection, and LED/digital status indication. Manufactured under ISO 9001:2015 standards and compliant with IS 8320.

Key Technical Advantages

Output Current

Up to 30A

Output Voltage

12V / 24V / 48V / 110V DC

Battery Compatibility

Lead Acid / VRLA / Li-Ion / NiCd

Charging Topology

CC / CV

Input Supply

230V AC, 50Hz

Certification

ISO 9001:2015

Technical Specifications

Validated industrial performance metrics for enterprise deployment.

Engineering Data Sheet IS 8320

Parameter	Specification
Standard	IS 8320
Input Voltage	230V AC ± 10%, Single Phase
Input Frequency	50Hz
Output Voltage	12V / 24V / 48V / 110V DC
Output Current	Up to 30A
Charging Topology	Constant Current / Constant Voltage (CC/CV)
Battery Compatibility	Lead Acid, VRLA/SMF, Lithium-Ion, Nickel Cadmium
Voltage Regulation	± 1% of set output voltage
Current Regulation	± 2% of rated output current
Efficiency	Up to 85%
Overcharge Protection	Auto cut-off with trickle / float mode
Short Circuit Protection	Electronic current limiting with auto recovery
Reverse Polarity Protection	Built-in
Status Indication	LED / Digital Voltmeter-Ammeter
Cooling	Natural / Forced Air (Fan Cooled for higher ratings)
Enclosure	MS Powder Coated Cabinet
Operating Temperature	-10°C to +55°C
Humidity	Up to 95% RH non-condensing
Mounting	Wall Mount / Rack Mount / Free Standing

Standards & Compliance

Certified engineering excellence across regional and global regulatory frameworks.

IS 8320

Compliance with standard engineering and safety performance metrics.

ISO 9001:2015

Certified Quality Management Systems for precision manufacturing.

Precision Configurations

Industrial Customizations

Our modular engineering workflow allows for specific adaptations to meet your site-specific infrastructure requirements. Consult with our technical team for bespoke builds.
